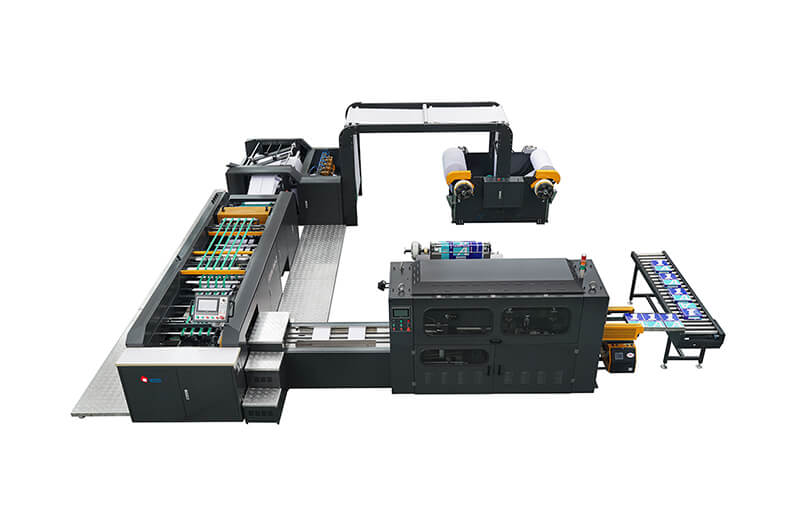

ACCU A4-2 A4Compact Cut Size Sheeter

Product : A4 Compact Cut Size Sheeter
Model : ACCU A4-2

Description


ACCU A4-2 A4. A compact space saving, high efficiency A4 copy paper sheeting and packaging production line adopts the most advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping.


Specification


Paper Reel Width/ Ancho del rollo de papel

Gross width 850mm(33.5’), net width 840mm(33’)

Ancho bruto 850 mm, ancho neto 840 mm

Paper roll  diameter/ Diámetro del rollo de papel

Max.Ф1450mm(57’).  Min.Ф600mm(23’)

Paper core  diameter/ Diámetro del núcleo de papel

3”(76.2mm)or 6”(152.4mm) or according to the clients’ demand

Paper weight / Peso del papel

60-100g/m2

Cut length/ Largo del corte

297mm ( specially design for A4 paper, the cutting length is 297mm)

Ream specification/ Especificación de resma

500 sheets Max. Height: 45-55mm

500 hojas Máx. Altura: 45-55 mm

Production speed/ Velocidad de producción

Max 0-300m/min(depends on different paper quality)

Máx.0-300 m / min (depende de la calidad del papel diferente)

Output of the ream/ Salida de resma

Max 16 reams/min

Max 16 resmas / min

Cutting accuracy/ Precisión del Corte

±0.2mm

Main power supply/ Fuente de alimentación

3*380V /50HZ

Voltage/ Voltaje

220V AC /24V DC

Power/ Capacidad

23KW

Air consumption/ Consumo de aire

200NL/min

Air pressure/ Presión

6 bar

Edge cutting/ ¡Corten!5~15mm×2
Safety standard/ Normas de Seguridad

Design  according the safety standard of China

Diseño según el estándar de seguridad de China


Video


 A4 size cutter (Letter size) 2 rollers fed 12 reams/min
