ACCU A4-4/5 A4Cut Size Sheeter / Cortador

Product : A4-4/5 A4Cut Size Sheeter Model : ACCU A4-4/5

Description

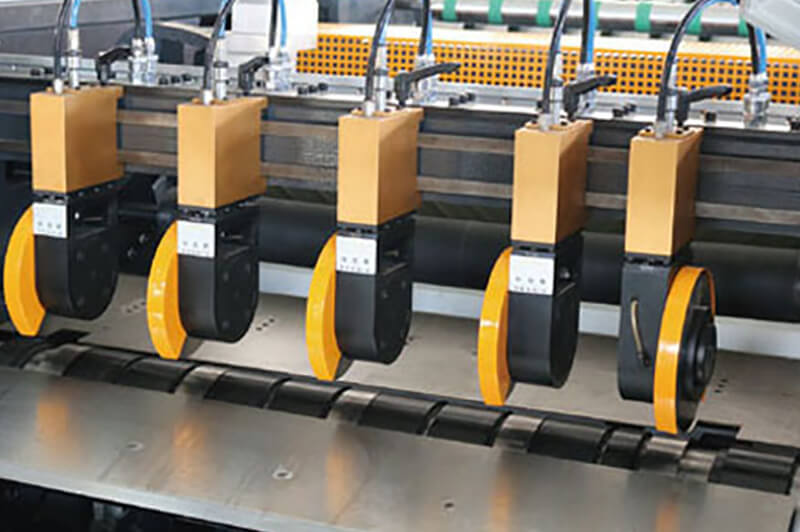

ACCU A4-4/5 A4 Cut Size Sheeter / Cortador adopts the most advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping.


Specification


Paper Reel Width/ Ancho del

rollo de papel

A4-4:Gross width 850mm(33.4‘), net width 840mm(33‘)

A4-4 : Ancho bruto 850 mm, ancho neto 840 mm

A4-5:Gross width 1060mm, net width 1050mm

A4-5 : Ancho bruto 1060 mm, ancho neto 1050 mm

Cutting numbers/ Número de cortes

A4-4:4 cuts  210mm (width)

A4-4: 4 cortes de 210 mm (ancho)

A4-5:5 cuts  210mm (width)

A4-5: 5 cortes de 210 mm (ancho)

Paper roll  diameter/ Diámetro del rollo de papel

Max.Ф1400mm(55“). Min.Ф600mm(24“)

Paper core  diameter/ Diámetro del núcleo de papel

3”(76.2mm)or 6”(152.4mm) or according to the clients’ demand

Paper weight / Peso del papel

60-100g/m2

Cut length/ Largo del corte

297mm ( specially design for A4 paper, the cutting length is 297mm)

Ream specification/ Especificación de resma

500 sheets Max. Height: 45-55mm

Production speed/ Velocidad de producción

Max 200m/min(depends on different paper quality)

Output of the ream/ Salida de Bisagra

Max 33 reams/min (5 unwindres) / 42 reams/min (5 unwindres)

Above output speed calculated as 250m/min machine speed.

Machine working speed depends on different paper.

Cutting accuracy/ Precisión del Corte

±0.2mm

Cutting condition/ Condiciones de corte

No variation of the speed, no break, cut all the paper at one time and need the eligible paper.

Main power supply/ Fuente de alimentación

3*380V /50HZ

Voltage/ Voltaje

220V AC /24V DC

Power/ Capacidad32KW
Air consumption/ Consumo de aire300NL/min
Air pressure/ Presión6 bar
Edge cutting/ ¡Corten!2×5-10mm
