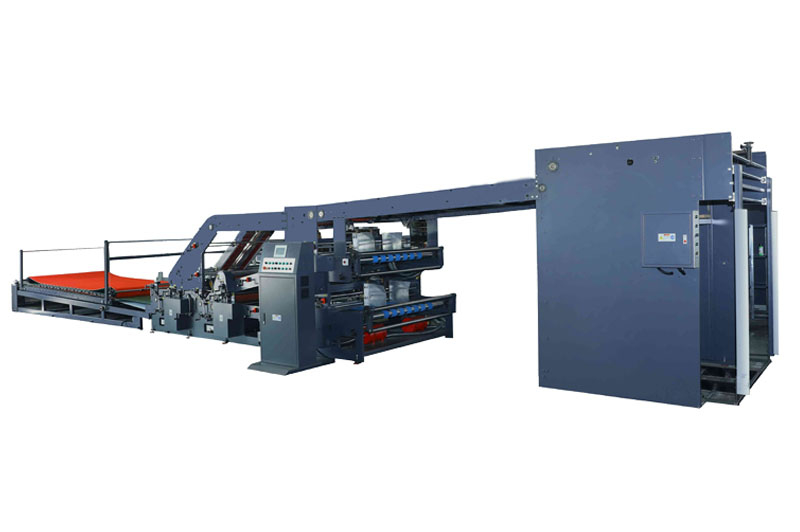

DW-1650 Automatic 5Ply Flute Laminator

Product : 5Ply Flute Laminator
Model: DW-1650

Description


Main Features


  • Automatic 5Ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminating two single flutes and one top cardboard into 5 ply or two single flutes into corrugated boards, also acting as a regular flute laminator to transfer thicker and large-sized boards smoothly and freely, operator friendly. b.Automatic 5Ply Flute Laminator is applied in broad scope of papers, substrate papers from cardboards, grey paperboards, single layer/ three/five layers corrugated boards which can be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers



Specification

Model

Modelo

DW-1650

Max. SheetSize(WxL)

Tamaño máximo (WxL)

1650x1400mm(65x55’)


Min. Sheet Size(WxL)

Tamaño mínimo de tabla

450x450mm(18x18’)


Thickness of litho

Espesor de Litho

150~800gsm

Thickness of middle

Espesor de medio

300-800gsm(single flute)

Thickness of substrate

Espesor del sustrato

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy

Precisión de laminado

±2mm(Subject to Paper Quality and Specifications)

Speed

velocidad

0 -5000sheets/hour(Subject to Paper Quality and Specifications)

Power

Longitud total

AC~380V(30HP)

Total weight

Peso todo

9800kg



Video

1650 Dual Flute Laminator 4ply 2ply



◆ 1650 Dual Flute Laminator
