ECO 1200E

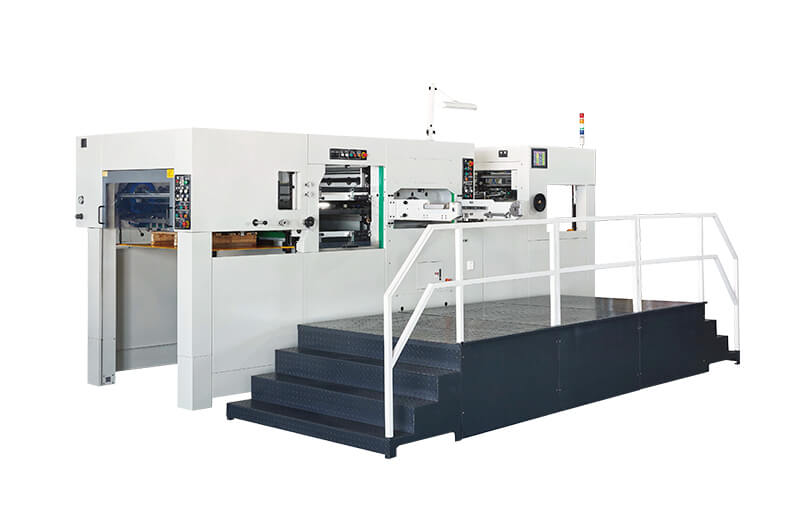

Product : ECO Series Diecutting Machine
Model : ECO 1200E

Description


ECO series diecutting machine is mainly used for die-cutting, creasing and stripping for paper, carton and tag in the printing and packaging industry. Especially for high-level fine printing products, such as wine boxes, cigarette boxes, gift boxes, home appliance boxes, cosmetics boxes, etc., are all able be die-cut, embossed and creased by this machine.


Superior ability to adapt and convenient operation, which make machine work stable and safety.


Specification


Max Sheet Size/

Papel Tamaño máximo

1200*960mm(47*37’)

Min Sheet Size/

Papel Tamaño mínimo

400*360mm (16*14’)

Max Diecutting Size/

Troquel Tamaño máximo

1180*950mm(46*37’)

Diecut Chase Size/

Troquel Tamaño del canal

1280*1080mm(50*42’)

Diecut Plate Size/

Tamaño de  Chapa del troquel

1230*966mm(48*38’)

Paper Range/

Gramaje del papel

Cardboard : 80-1800g/m2

Corrugate : Max 5mm Thickness

Gripper Margin/

Margen de la pinza

8mm

Max Machine Speed/

Velocidad máxima

6500 Sheet/h

Max Pressure/

Presión máxima

320 Ton

Power requirement/

Requisitos de potencia

380V 50Hz 3 Phase

Total Weight /

Peso de la maquina

20Ton

Main Motor Power/

Potencia principal

7.5Kw

Dimension /

Tamaño (L*W*H)

6900*2254*2488mm(271**88*98’)

Machine Power/

Potencia de máquina

25kw
