ECO 1200F

Product : ECO series diecutting machine Industry : Die-cutting, creasing and stripping for paper, carton and tag in the printing and packaging industry Advantage : Adapt and convenient operation Model : ECO 1200F

Description


ECO series automatic diecutting and hot stamping machine diecutter with stamping machine for carton and corrugated paper board adopts numerous advanced pneumatic and servo driving processing technology from home and abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.


It is widely used in the production of packaging, gift boxes, cards, paper gift bags,any paper packaging that needs to be hot stamping.


Specification


Max Sheet Size

Papel Tamaño máximo

1200x960mm(47x38’)

Min Sheet Size

Papel Tamaño mínimo

400x360mm (16x14’)

Max Diecutting Size

Troquel Tamaño máximo

1180x950mm(46x37’)

Diecut Chase Size

Troquel Tamaño del canal

1280x1080mm(50x42’)

Diecut Plate Size

Chapa del troquel Tamaño

1230x966mm(48x38’)

Paper Range

Gramaje del papel

Cardboard:80-1800g/m2

Corrugate : Max 5mm

Gripper Margin

Margen de la pinza

8mm

Max Machine Speed

Velocidad máxima

7000 Sheet/Hour

Max Pressure

Presión máxima

320 Tons

Power requirement

Requisitos de potencia

380V 50Hz 3 Phase

Total Weight

Peso de la maquina

20Tons

Compressed air pump

Comsumo de aire

Air compressor exhaust volume 0.36m3/min


Dimension(LxWxH)

Tamaño de maquina (largo x ancho x alto)

6900*2260*2500mm(271x89x98’)

Max.Stamping size/

Estampa Tamaño máximo

1150*920mm(45x36’)

Foil width(mm)/

Ancho de foil (mm)

25-600mm(1-24’)

Max.Foil Roll Diameter

Diámetro máximo de foil

Φ200mm(8’)  Φ240mm(9’)

Temperature Range

Temperature disponible

0-200℃

Number of Heated Zones

Número de zonas calientes

12 Zones

Power for Heating(s/h)

Potencia de calentamiento (s / h)

25Kw

Maximum Speed/

Velocidad maxima de estampa

5500 sheets/hour


Download

Video


 Bonitec Consulting-ECO106T Hostamping Machine

1060*750mm Sheet fed

Longitudinal 3 Foil stamping + Embossing same time

With Foil Rewind Box


 Bonitec Consulting-ECO106T Flat bed Hostamping Machine

1060*750mm Sheet fed

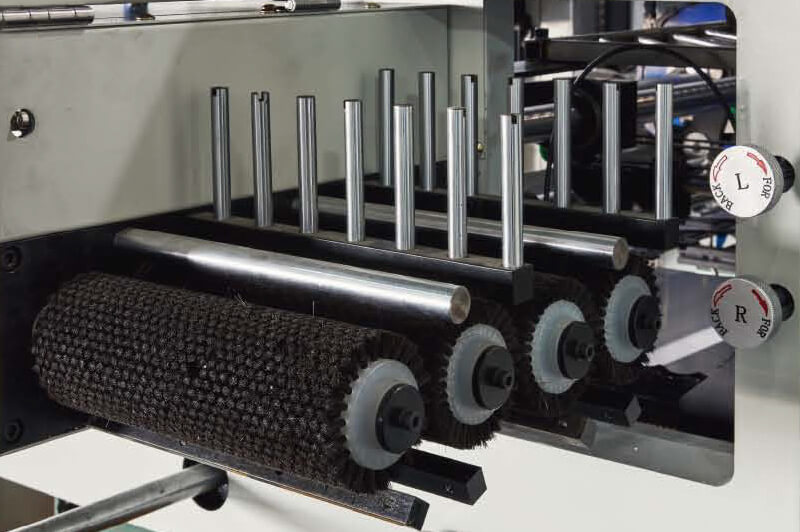

3 Longitudinal Narrow Foil stamping with Brush rewind

2 Transversal Wide foil stamping
