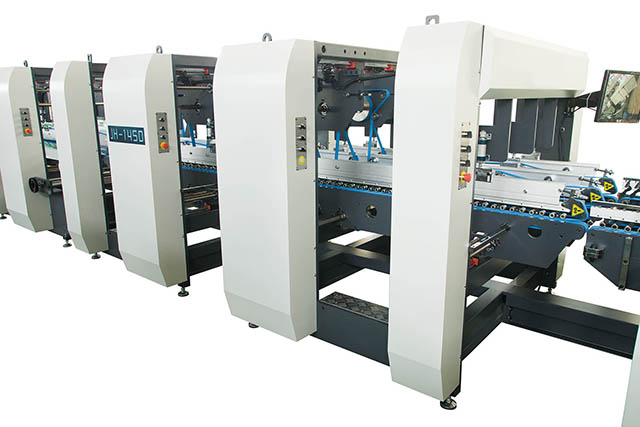

JH1200/1450/1700/2100/2300/2800/3200 Corrugated Folder Gluer

Product : JH Series Corrugated Folder Gluer Industry : Packaging industry Advantage : High speed, easy operation Model : JH-1200/1450/1700/2100/2300/2800/3200

Description

Features of JH series:


  • Modularization structure design, can upgrade machine function according to customer’s requirements

  • Machine drive is controlled by independent motor

  • Special sheet correction device ensure accuracy sheet feeding

  • Strengthened and widen belts which is suitable for corrugated box

  • Machine guide plate equipped with electric movement system which is easy for adjustment

  • Upper and lower plate adopts linear guiding system, which insures mechanical accuracy of movement

  • Humanized design of accessories installation, simple and easy to operate

  • Whole machine can be adjusted by one hexagonal wrench

  • Trombone(pressing) unit equipped with correction and alignment device, which improves gluing effect

  • Collection unit adopts cylinder pressure system, which helps to adjust pressure and ensures product gluing effect

  • User friendly touch screen control panel

  • The remote controller makes machine operation more convenient


Specification

Model

Modelo

JH1200

JH1450



JH1700



JH2100

JH2300

JH2800

JH3200

Max Sheet Size

Papel Tamaño máximo


1200x1300mm

47x35


1450x1300mm

57x35

1700x1300mm

67x35

2100x1300mm

(83x35’)

2300x1300mm

91x35

2800x1300mm

110x35


3200x1300mm

126x35

Min Sheet Size

Papel Tamaño mínimo


420x180mm

16x7



420x180mm

16x7


420x180mm

(16x7’)

520x180mm

20x7

520x180mm

20x7

520x180mm

20x7

520x180mm

20x7

Applicable paper

Documento de aplicación

Cardboard: 350G-800G, Corrugated Paper:FECBAEBAB


Max.belt speed

Velocidad máxima del cinturón

250m/min

(9843’/min)

250m/min

(9843’/min)

250m/min

(9843’/min

250m/min

(9843’/min)

250m/min

(9843’/min)

250m/min

(9843’/min)

250m/min

(9843’/min)

Machine length

Longitud de máquina


23000mm(905’)



23000mm(905’)


23000mm(905’)

23000mm(905’)

23000mm(905’)

23000mm(905’)

23000mm(905’)

Machine width

Anchura de máquina


2400mm(94’)




2700mm(106’)


2900mm(114’)

3400mm(134’)

3600mm(142’)

4200mm(165’)


4800mm(189’)

Machine height

Altura de máquina


2000mm(79’)



2000mm(79’)


2000mm(79’)

2000mm(79’)

2000mm(79’)

2000mm(79’)

2000mm(79’)

Total power

Potencia total

35kw


42kw


45kw

45kw

45kw

45kw

60kw

Max.air displacement

Volumen máximo de emisiones

0.7m3/min

0.7m3/min0.7m3/min0.7m3/min0.7m3/min0.7m3/min0.7m3/min

Total weight

Peso bruto


15000kg


15500kg

16000kg

16500kg

17000kg

18000kg

20000kg
