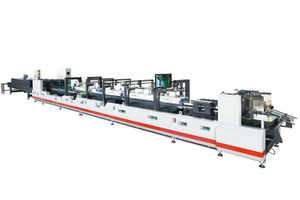

JH1380AC/1450AC Folder Gluer for Corrugated

Product : JH series folder gluer
Industry : Packaging industry
Advantage : High speed, easy operation
Model : JH-1380AC/1450AC

Description

Features of JH series:


  • Modularization structure design, can upgrade machine function according to customer’s requirements

  • Machine drive is controlled by independent motor

  • Special sheet correction device ensure accuracy sheet feeding

  • Strengthened and widen belts which is suitable for corrugated box

  • Machine guide plate equipped with electric movement system which is easy for adjustment

  • Upper and lower plate adopts linear guiding system, which insures mechanical accuracy of movement

  • Humanized design of accessories installation, simple and easy to operate

  • Whole machine can be adjusted by one hexagonal wrench

  • Trombone(pressing) unit equipped with correction and alignment device, which improves gluing effect

  • Collection unit adopts cylinder pressure system, which helps to adjust pressure and ensures product gluing effect

  • User friendly touch screen control panel

  • The remote controller makes machine operation more convenient


Specification

Model

Modelo

JH1380

JH1450

Max Sheet Size

Papel Tamaño máximo

1380x900mm

54x35

1450x900mm

57x35’

Min Sheet Size

Papel Tamaño mínimo

420x180mm

16x7

420x180mm

16x7

Applicable paper

Documento de aplicación

Cardboard: 350G-800G, Corrugated Paper:FECBA

Max.belt speed

Velocidad máxima del cinturón

250m/min

(9843’/min)

250m/min

(9843’/min)

Machine length

Longitud de máquina

16800mm(661’)

16800mm(661’)

Machine width

Anchura de máquina

2050mm(81’)

2050mm(81’)

Machine height

Altura de máquina

1480mm(58’)

1480mm(58’)

Total power

Potencia total

35KW

35KW

Max.air displacement

Volumen máximo de emisiones

0.7m3/min

0.7m3/min

Total weight

Peso bruto

9000kg

9000kg


Video


 Full automatic high speed folder gluer 1380mm E flute corrugated
