JY-1450T

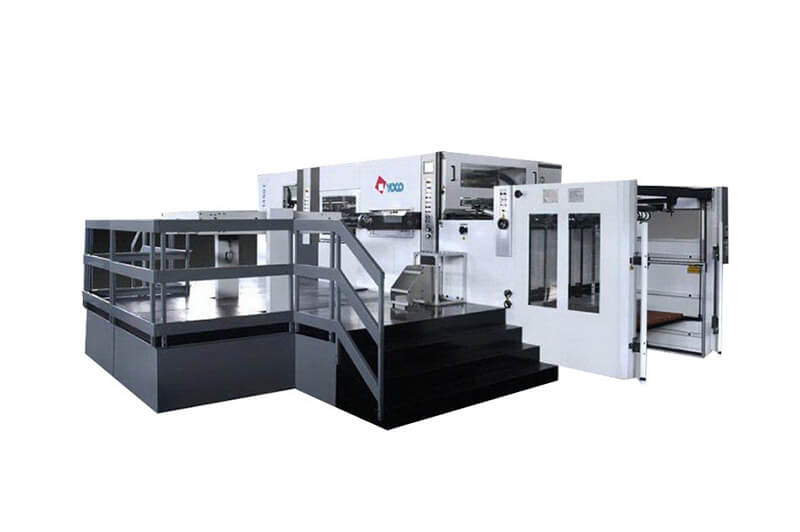

Product : JY Series Automatic Diecutting and Foil Stamping Machine
Advantage : Adapt and convenient operation
Model: JY-1450T

Specification


Model

Modelo

JY-1450T

Max Sheet Size

Papel Tamaño máximo

1450x1150mm(57x45’)

Min Sheet Size

Papel Tamaño mínimo

680x520mm(27x20’)

Max Diecutting Size

Troquel Tamaño máximo

1430x1130mm(56x44’)

Maximum stamping size

Estampa Tamaño máximo

1430x1130mm(56x44’)

Inside Chase Size

Troquel  Tamaño del canal

1510x1215mm(59x48’)

Paper Range

Gramaje del papel

Cardboard≧200m²

Corrugated 1-7mm

Max Pressure

Presión máxima

400 Tons
Minimum gripper waste (distance from first knife to paper edge)12mm

Maximum diecutting speed

Velocidad máxima

5000 Sheets/Hour

Maximum stamping speed

Velocidad maxima de estampa

4000 Sheets/Hour

Heating zones

Zonas de calentamiento

12 Zones

Maximum foil roll(diameter)

Diámetro máximo de foil

200mm (8’)

Number of foil rollers

Número de rodillos de aluminio

2 longitudinal

Max. pile height at feeder

Max. altura del pelo en el alimentador

1900mm(75’)

Max. pile height at delivery

Max. altura de la pila al momento de la entrega

1400mm(55’)
Main motor power22kw

Total Power

Poder total

105kw
Voltage380V,3PH,50/60HZ
Dimension L10400xW2950xL3250mm

Dimension( incl platform)(LxWxH)

Tamaño de maquina(Plataforma incluida)

L10570xW5450xL3250mm

(354x215x128’)

Total Weight/

Peso de la maquina

32Tons
