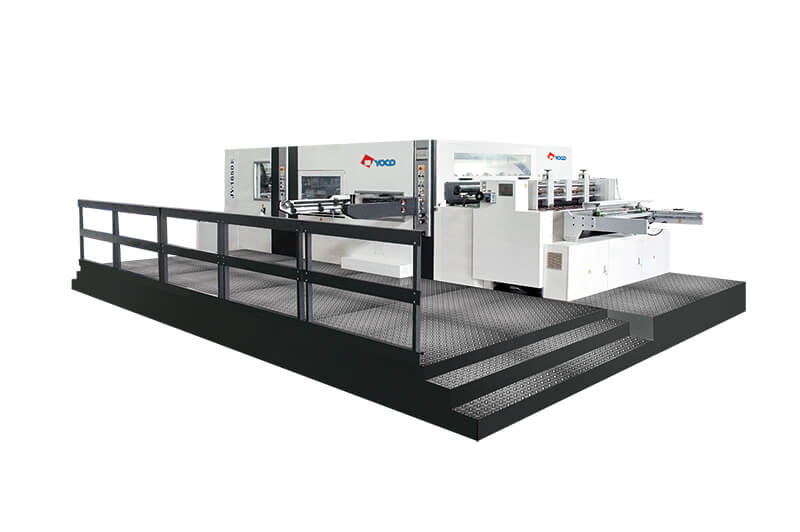

JY-1650E with Lead Edge Feeder

Product : JY Series Diecutting Machine with Lead Edge Feeder Model : JY-1650E
Availability:

Specification


Model

Modelo

JY-1650E(Lead edge feeder)

Max Sheet Size

Papel Tamaño máximo

1650×1200mm (65 x47’)

Min Sheet Size

Papel Tamaño mínimo

680×520 mm (27 x20’)

Max Diecutting Size

Troquel Tamaño máximo

1630x1180 mm (64 x46’)

Inside Chase Size

Troquel  Tamaño del canal

1660x1215 mm (65 x48’)

Paper Range

Gramaje del papel

Corrugated paper:2-9mm

Max Pressure

Presión máxima

400 Tons

Min Gripper Waste

Desperdicio de cartera mínima

12mm(distance from first knife to paper edge)

Max Machine Speed

Velocidad máxima

5000 Sheets/Hour
Main motor power22kw

Total Power

Poder total

45Kw
Voltage380/220V, 3PH, 50/60HZ
DimensionL10000xW3450xH2600mm

Dimension( incl platform)(LxWxH)

Tamaño de maquina(Plataforma incluida)

L11130xW6000xH2600mm

(437 x236 x98’)

Total Weight(excl. feeder)

Peso de la maquina(Sin contar la cocina)

33Tons


Video


 1650E Leading edge feeder, 3 layers job
