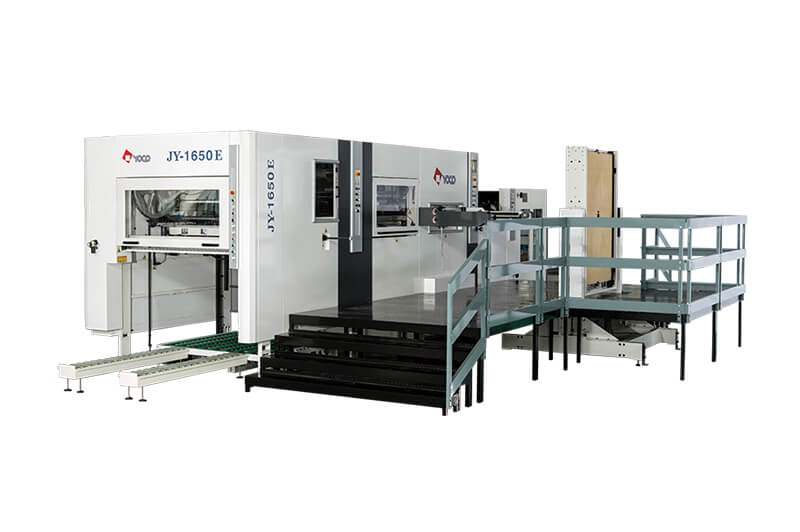

JY-1650E with Top Fed Feeder

Product : JY Series Diecutting Machine
Model : JY-1650E with Top Fed Feeder

Inquire

Specification


Model

Modelo

JY-1650E(Top-fed feeder)

Max Sheet Size

Papel Tamaño máximo

1650×1200mm (65 x47’)

Min Sheet Size

Papel Tamaño mínimo

680×520 mm (27 x20’)

Max Diecutting Size

Troquel Tamaño máximo

1630x1180 mm (64 x46’)

Inside Chase Size

Troquel  Tamaño del canal

1660x1215 mm (65 x48’)

Paper Range

Gramaje del papel

Cardboard≥350g/m2

Corrugated:1-7mm

Max Pressure

Presión máxima

400 Tons

Min Gripper Waste

Desperdicio de cartera mínima

12mm(distance from first knife to paper edge)

Max Machine Speed

Velocidad máxima

5000 Sheets/Hour

Total Power

Poder total

40Kw

Dimension( incl platform)(L*W*H)

Tamaño de maquina（Plataforma incluida）

L10566×W6000×H2864mm

(416 x236 x113’)

Total Weight(excl. feeder)

Peso de la maquina(Sin contar la cocina)

30Tons


Download


 Brochure Top Fed Feeder


Video


◆ TAIWAN installation 1650E TOP FEEDER
