JY-76/85T

Product : JY Series Automatic Diecutting and Foil Stamping Machine Model : JY-76T & JY-85T Advantage : Adapt and convenient operation

Specification


Model

Modelo

JY-76TJY-85T

Max Sheet Size

Papel Tamaño máximo

760x600mm(30x24’)850x600mm(33x24’)

Min Sheet Size

Papel Tamaño mínimo

310x310mm(12x12’)310x310mm(12x12’)

Max Diecutting Size

Troquel Tamaño máximo

750x580mm(30x23’)840x580mm(33x23’)

Maximum stamping size

Estampa Tamaño máximo

750x530 mm(30x21’)840x530 mm(33x21’)

Inside Chase Size

Troquel  Tamaño del canal

850x610mm(33x24’)

940x610mm  (37x24’)

Paper Range

Gramaje del papel

Diecutting: 80g/m2 up to E flute corrugated paper


Foil stamping: 80g/m2 and

Single layer cardboard

Diecutting: 80g/m2 up to E flute corrugated paper


Foil stamping: 80g/m2 and Single layer cardboard

Max Pressure

Presión máxima

200 Tons200 Tons

Min Gripper Margin

Margen de la pinza

8mm8mm

Maximum diecutting speed

Velocidad máxima

7000 Sheets/Hour7000 Sheets/Hour

Maximum stamping speed

Velocidad maxima de estampa

6000 Sheets/Hour6000 Sheets/Hour
Heating plate power20KW20KW

Heating zones

Zonas de calentamiento

10areas10areas

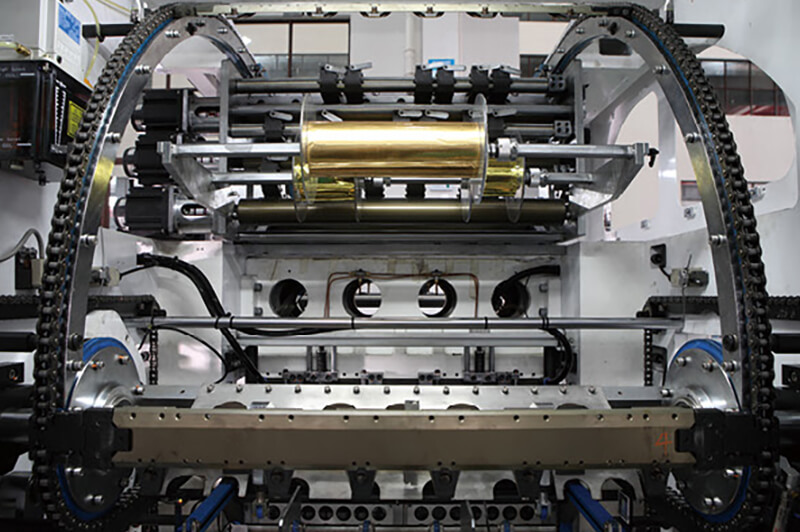

Maximum foil roll(diameter)

Diámetro máximo de foil

Longitudinal 220mm (9’)Longitudinal 220mm (9’)

Number of foil rollers

Número de rodillos de aluminio

Standard 3 rollersStandard 3 rollers

Max. pile height at feeder

Max. altura del pelo en el alimentador

1100mm(43’)1300mm(51’)

Max. pile height at delivery

Max. altura de la pila al momento de la entrega

750mm(30’)1000mm(39’)

Total Power

Poder total

35Kw35Kw
Dimension L4100xW1900xH2200mmL4100xW2000xH2200mm
Dimension( incl platform)(LxWxH)

Tamaño de maquina(Plataforma incluida)

L4100xW2900xH2200mm

(161x146x87’)

L4100xW3000xH2200mm (193x150x79’)

Total Weight/

Peso de la maquina

13Tons14Tons
