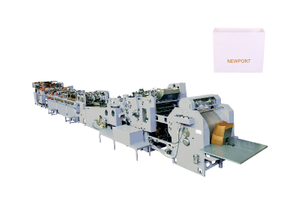

KING-220H/350H/450H/500H-Fully Automatic Sheet Feed Type Square-Bottom Bag Making Machine

Product : Fully Automatic Sheet Feed Bag Making Machine
Model : KING-220H/350H/450H/500H

Description

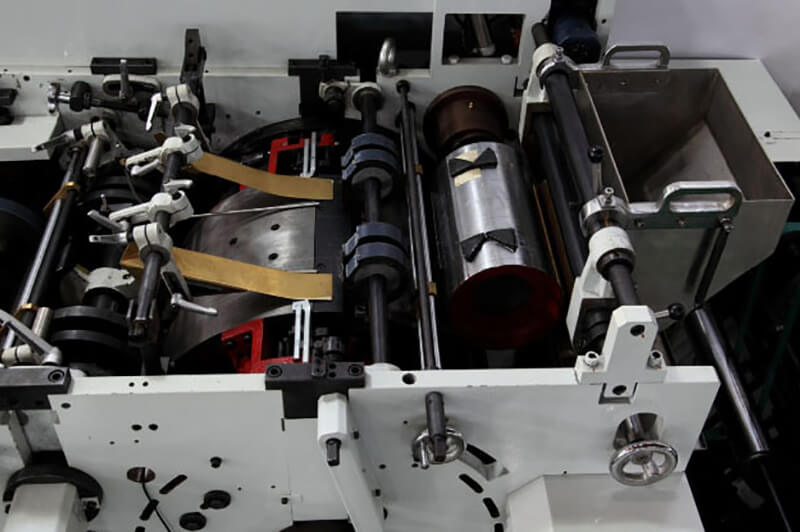

Fully Automatic Sheet Feed Type Square-Bottom Bag Making Machine adopts sheet-feeding mode. Handles are made by roll paper reinforced card and paper rope. The whole process are completed in one pass by feeder conveying, handle making, handle pasting, bag mouth folding, bag tube creasing, tube forming, square bottom forming and paper bag counting and collecting, thus reduce the labor effectively and increase the efficiency.


Specification


Model/Modelo

KING-220H KING-350H KING-450H KING-500H

Width of Bag(mm)/

Ancho de la bolsa (mm)

150-260

180-350

220-450

280-500

Width of Bottom(mm)/Anchura del Fondo(mm)

60-130

70-160

70-170

80-230


Length of tube(mm)/largo del tubo(mm)

215-395

280-540

300-560

400-740


Max.sheet(LXW)

Max papel tamaño

445X770mm

(18X28')

600X1050mm

(24X41')

620X1260mm

(24X50')

800X1260mm

(31X50')

Min.sheet(LXW)

Min papel tamaño


265X490mm (10X19')


340X530mm

(13X21')

380X610mm

(15X24')

460X750mm

(18X30)

Cutting length of cardboard at bag mouth(mm)/

Longitud del cartón(mm)

133.4 152.4 188.4 228.6

Width of cardboard at bag mouth)/

ancho del parche de cartón

80-90mm

(3.1-3.5')

90-100mm

(3.5-3.9')

90-100mm

(3.5-3.9')

90-100mm

(3.5-3.9')

Distance between rope holes/

Distancia entre  agujeros (mm)

66.7mm

(2.6')

76.2mm

(3')

94.2mm

(3.7')

114.3mm

(4.5')

Height of rope

Altura de la cuerda

160-180mm

(6-7')

170-185m

(m7-7.2')

170-185m

(m7-7.2')

170-190mm

(7-7.5')

Width of folding at bag mouth/

Ancho de plegado en la boca de la bolsa

40-50mm

(1.6-1.9')

40-60mm

(1.6-2.4')

40-60mm

(1.6-2.4')

40-60mm

(1.6-2.4)

Power(kw)/Capacidad 27kw 27kw 30kw 34kw

Bag Making machine's dimensions(mm)/

Tamaño de la máquina

W2050mm(81') W2050mm(81') W2320mm(91') W2320mm(91')
H2700mm(106') H2710mm(107') H2710mm(107') H3160mm(124')
L14120mm(556') L14680mm(578')


L14680mm(578')

L17870mm(704')

Handle Making machine's dimensions

Dimensiones de la máquina de fabricación de manijas

W1340mm(53') W1340mm(53') W1340mm(53') W1340mm(53')
H2690mm(106') H2690mm(106') H2690mm(106') H2690mm(106')
L5410mm(213') L5410mm(213') L5410mm(213') L5410mm(213')
Speed/ velocidad de produccion 60-70 bags/min 60-70bags/min 60-70bags/min 50-55bags/min
Paper Weight/Peso del papel 80-180grm 80-180grm  80-180grm  80-180grm
Handle size(mm)/Tamaño del mango (mm)

Diameter of rope: 4-8m/m,     Diámetro de la cuerda: 4-8 m / m

Max. diameter of rope paper: 1000m/m   Max. diámetro de papel de cuerda: 1000 m / m

Paper weight for pasting rope: 120g/m2   Gramaje de papel para pegar cuerda: 120 g / m2
