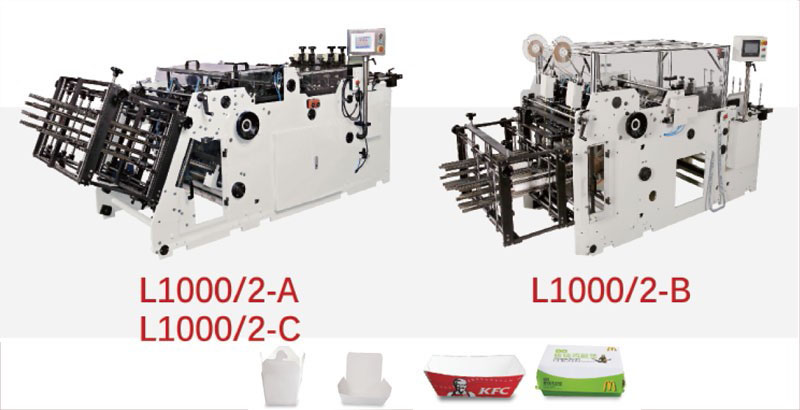

L1000/2-A / L1000/2-B Hamburg Box Maker - Double lane

Product : Hamburg Box Maker
Model:L1000/2-A / L1000/2-B (Servo System) L1000/2-C (Mechanical Drive)

Description


The differences among L1000/2-A/B/C:


1.L1000/2-A only can make the same box on the two lanes at the same time.

2.L1000/2-B can make the different box on the two lanes at the same time.

3.L1000/2-C adopts mechanical device to control the punching head.



Specification

Model

Modelo

L1000/2-A  C

Voltage

Voltaje

380V/50Hz

Space Need

Necesidades de espacio

4x1.4 meter(158x55’)

Total Power

Potencia total

8Kw

Maximum Production Speed

Velocidad máxima de producción

400 pcs/min

Compressed Air

Aire comprimido

0.6 Mpa

Packing Size

Tamaño del paquete

2980x1520x1520mm(118x60x60')

Net weight

Peso neto

3500KGS

Gross weight

Peso bruto

4500KGS

Layout size

Tamaño de disposición

1360x1360x900mm(54x54x35')

Material

Material

200-600grmm

Corrugate board<1.5mm



Video

Hamburg / fast food box maker



DOUBLE LINE MACHINE
