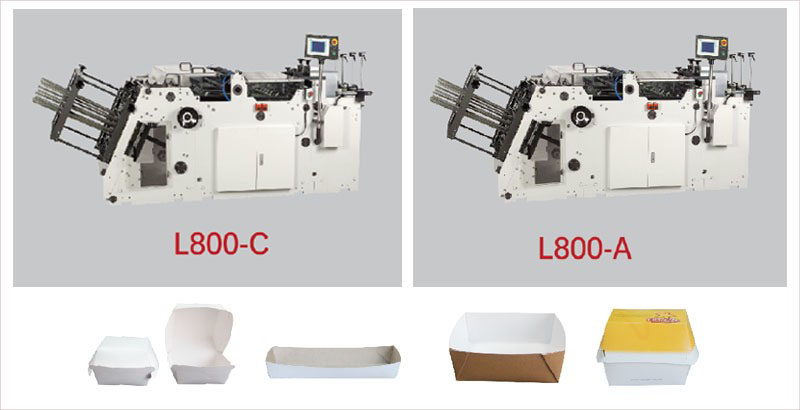

L800-A/L800-C Hamburg Box Maker - Single Lane

Product : Hamburg Box Maker
Model:L800-A/L800-C

Description


The differences between L800-A and L800-C:


L800-A adopts servo system to control the punching head, but L800-C adopts mechanical device to control the punching head, so L800-A is easier to change different box than L800-C

L800-A is better to make eight corners boxes than L800-C


Specification

Model

Modelo

         L800-A

L800-C

Voltage

Voltaje

380V/50Hz

380V/50Hz

Space Need

Necesidades de espacio

4x1.2 meter(158x48)

4x1.2 meter(158x48’)

Total Power

Potencia total

8Kw

5Kw

Maximum Production Speed

Velocidad máxima de producción

200 pcs/min

200 pcs/min

Compressed Air

Aire comprimido

0.6 Mpa

0.6 Mpa

Packing Size

Tamaño del paquete

2980x1560x1320mm(118x62x52’)

2980x1560x1320mm(118x62x52’)

Net weight

Peso neto

1500KGS

1500KGS

Gross weight

Peso bruto

1600KGS

1600KGS

Layout size

Tamaño de disposición

1310x1170x900mm(52x46x35’)

1310x1170x900mm(52x46x35’)

Material

Material

200-600grmm

Corrugate board<1.5mm

200-600grmm

Corrugate board<1.5mm



Video

Single line hamburg box maker
