PIONEER-240/350/450 - Automatic Sheet Feed Type Square-Bottom Bag Making Machine

Product : Automatic Sheet Feed Type Square-Bottom Bag Making Machine
Model : PIONEER-240/350/450

Description

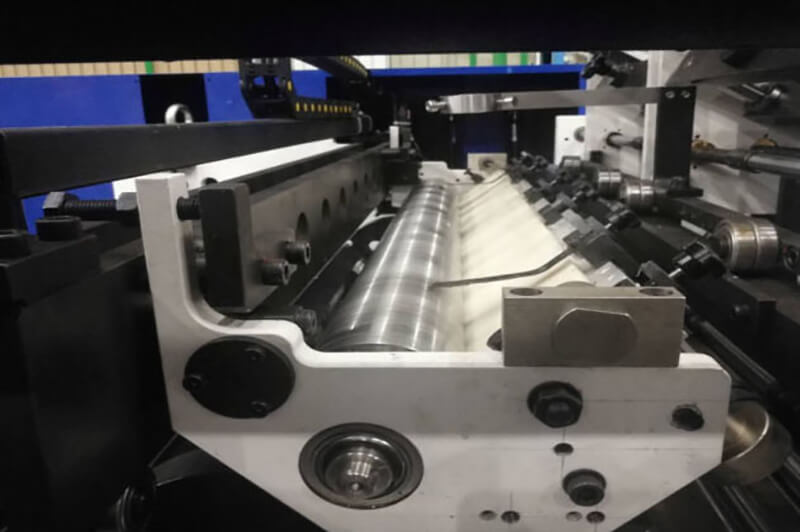

Automatic Sheet Feed Type Square-Bottom Bag Making Machine adopts sheet-feeding mode. The whole process are completed in one pass by feeder transferring, reinforced card pasting, bag tube creasing, paper bag mouth folding and inserting, side gluing, tube forming, paper bag turning over, hole punching, paper bag square bottom forming, paper bag counting and collecting.


This paper bag machine is the best choice for making all kinds of traceless medium and high-end gift bags by means of single sheet paper.


Specification


Model/Modelo

PIONEER-240 PIONEER-350 PIONEER-450

Width of Bag/

Ancho de bolsa

120-220mm

(5-9')

180-350mm

(7-14')

220-450mm

(9-18')

Width of Botto/

Anchura del Fondo

50-110mm

(2-4')

70-160mm

(3-6')

70-170mm

(3-7')

Length of tube/

Longitud del tubo

180-410mm

(7-16')

280-540mm

(11-21')

320-560mm

(13-22')

Max.sheet(LXW)

Max papel tamaño

445X720mm

(18X28')

600X1050mm

(24X41')

620X1260mm

(24X50')

Min.sheet(LXW)

Min papel tamaño


215X445mm

(8X18')


340X530mm

(13X21')

380X620mm

(15X24')

Head card length/

Longitud de la tarjeta

90-230mm

(4-9')

150-340mm

(6-13')

190-370mm

(7-15')

Head card width/

Anchura de la tarjeta


22-35mm

(0.9-1.4')


20-50mm

(0.8-2')

20-50mm

(0.8-2')

Head card thickness/

Gramaje de la tarjeta

200-450 g/m2

200-450 g/m2

200-450 g/m2

Top folding width/

Ancho de plegado superior

25-40mm

(1-1.6')


25-60mm

(1-2.4')


25-60mm

(1-2.4')

Punching diameter/

Diámetro de perforación

4、5、6(mm)

0.16、0.19、0.24(')

4、5、6(mm)

0.16、0.19、0.24(')

4、5、6(mm)

0.16、0.19、0.24(')

Punching distance/

Distancia de perforación

60、80、100(mm)

2.4、3.1、3.9(')

80、100、120(mm)

3.1、3.9、4.7(')

100、120、140(mm)

3.9、4.7、5.5(')

Power/(kw)/ Capacidad 20kw 26kw


28kw

Paper Thickness /Gramaje de papel 100-300 gsm

Bag Making machine's dimensions/

Tamaño de la máquina

W1300mm(51') W1700mm(67') W1910mm(75')
H2010mm(79') H2460mm(97')


H2460mm(97)

L15400mm(606') L16510mm(650') L16510mm(650')

Speed/

Velocidad

60bags/min 60bags/min 60bags/min


Download

Video


 Pioneer 450 Paper bag Machine 128g Film Laminated Paper Punch Holes Head Card Paste inline 60 bags/min
