RT Series Automatic Window Patching Machine

Product : Automatic Window Patching Machine
Model : PRO-600/1100

Description

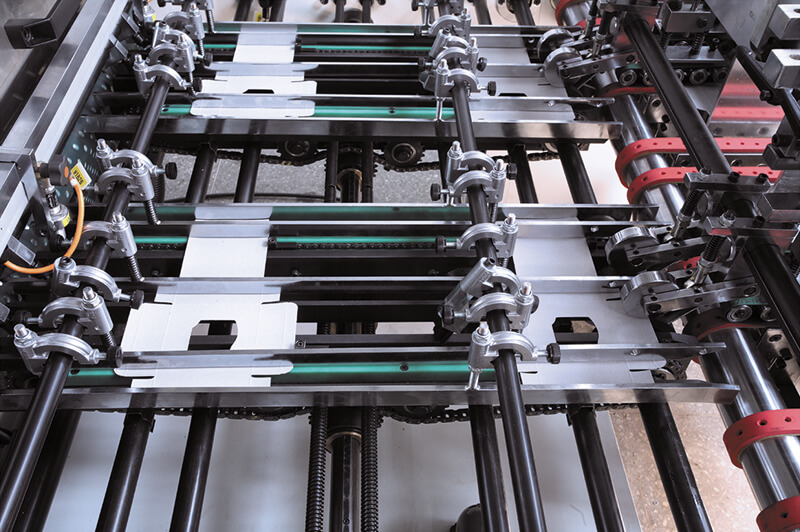

RT Series automatic window patching machine is suitable for paperboard and corrugating paper. The paper pile is separated by the way of drawing paper from the bottom with non-stop feeding . After positioning with push guide, printing glue of flexible plate module, stable and accurate cut of notch and crosscut. Achieve the function of laminating for towel box, gift box, toy box, tissue box, milk box and other windows.


Specification


Model/Modelo

PRO-600PRO-1100ECO-1100

Max. sheet size (WxL)/Tamaño máximo

520 x 600 mm(20 x 23’)1100 x 920 mm(43 x 36’)1000 x 710 mm(39 x 28’)

Min. sheet size (WxL)/Tamaño mínimo de la tabla

80 x 100 mm(3 x 4’)80 x 100 mm((3 x 4’)80 x 100 mm((3 x 4’)

Max. window size/Tamaño máximo de la ventana

400x 400 mm(15 x 15’)840 x 500 mm(33 x 19’)840 x 500 mm(33 x 19’)

Min. window size/Tamaño mínimo de la ventana

30 x 45 mm(1 x 2’)30 x 45 mm(1 x 2’)30 x 45 mm(1 x 2’)

Paper thickness/Grosor del papel

Cardboard: 200g/m²~2,000g/m²

Corrugated board: from micro-flute~6mm thickness

Cardboard: 200gr/m²~2,000gr/m²

Corrugated board: from micro-flute~6mm thickness

Cardboard: 200gr/m²~2,000gr/m²

Corrugated board: from micro-flute~6mm thickness

Film thickness/Espesor de membrana

0.03~0.2mm0.03~0.2mm0.03~0.2mm

Accuracy/Exactitud F

Left/right ±0.5mm; top/bottom ±1mmLeft/right ±0.5mm; top/bottom ±1mmLeft/right ±0.5mm; top/bottom ±1mm

Machine dimension(LxWxH)/Tamaño de la máquina (longitud x anchura x altura)

4500 x 1500 x 1700mm (177 x 59x67’)4225 x 1700 x 1500mm (166x 67x59’)4225 x 1700 x 1500mm(166 x 67x59’)

Machine weight/Peso de máquina

2800kgs3300kgs3300kgs

Main motor power/Potencia principal

3kw3kw3kw

Glue roller power/Potencia de rodillo

0.18kw0.09kw0.09kw

Delivery motor power/Potencia de transmisión

0.37kw0.37kw0.37kw

Machine speed/Velocidad de máquina

About 10000 pcs/h

About 10000 pcs/hAbout 10000 pcs/h
Double Max.sheet size(WxH)/Tamaño máximo (ancho x alto)
1100X450mm
Double speed/Doble velocidad
About 20000 pcs/h
