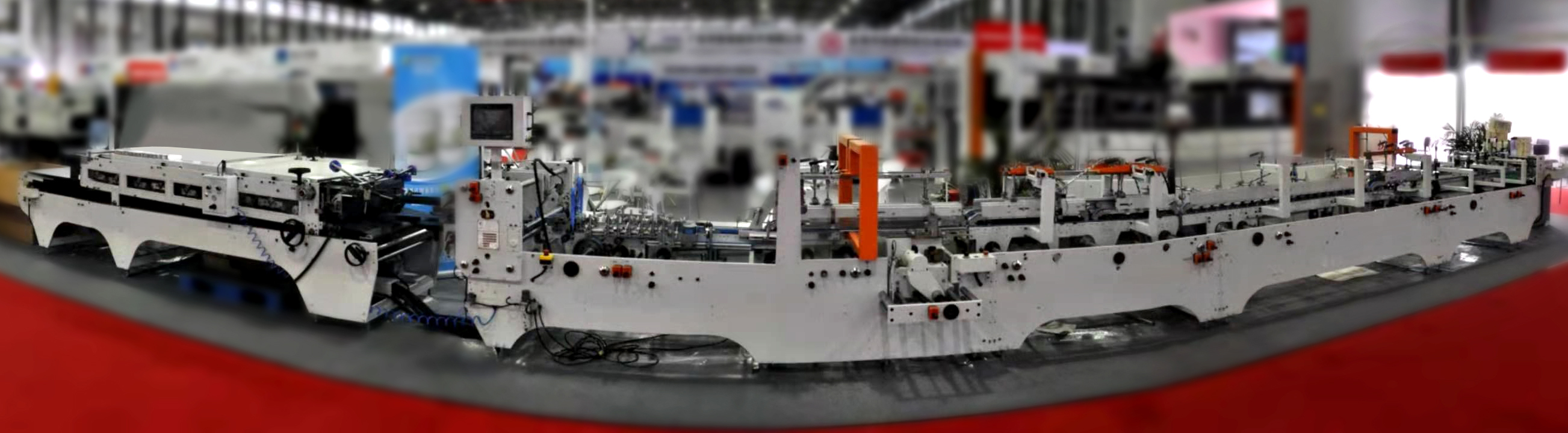

VEGA-800/1000 Automatic Folder Gluer

Product : VEGA Folder Gluer
Industry : Packaging industry
Advantage : High speed, Easy operation
Model : VEGA-800/1000

Specification


Model

Modelo

VEGA-800

VEGA-1000

Sheet Size

Tamaño de tabla

Max 800*800mm(32*31’)

Min 128*55mm(5*2’)

Max 1000*800mm(40*31’)

Min 128*55mm(5*2’)

Material

Material

Card Board≤650g/m2

Corrugated Board:E,F,N

Cartón≤650g / m2

Cartón corrugado: E, F, N

Card Board≤750g/m2

Corrugated Board:E,F,N

Cartón≤750g / m2

Cartón corrugado: E, F, N

Box types

Tipo de caja

One side gluing box

Double sides gluing box

Crash lock box

Caja de encolado de un lado

Caja de encolado de doble cara

Auto Fundo

One side gluing box

Double sides gluing box

Crash lock box

Caja de encolado de un lado

Caja de encolado de doble cara

Auto Fundo

Max Speed

Velocidad máxima

400m/min

(15748’/min)

400m/min

(15748’/min)

Total Power

Potencia total

Standard 19kw

Standard 19kw

Main body power

Energía primaria

15kw

15kw

Weight

Peso

Standard 5300kg

Standard 5500kg


Dimension ( L x W x H)

Tamaño( L x W x H)

Standard 13800*1960*1900mm

(543*77*74’)

Standard 13800*2080*1900mm

(543*82*74’)


Video


 VEGA 1000 FOLDER GLUER 2

 VEGA 1000 FOLDER GLUER
