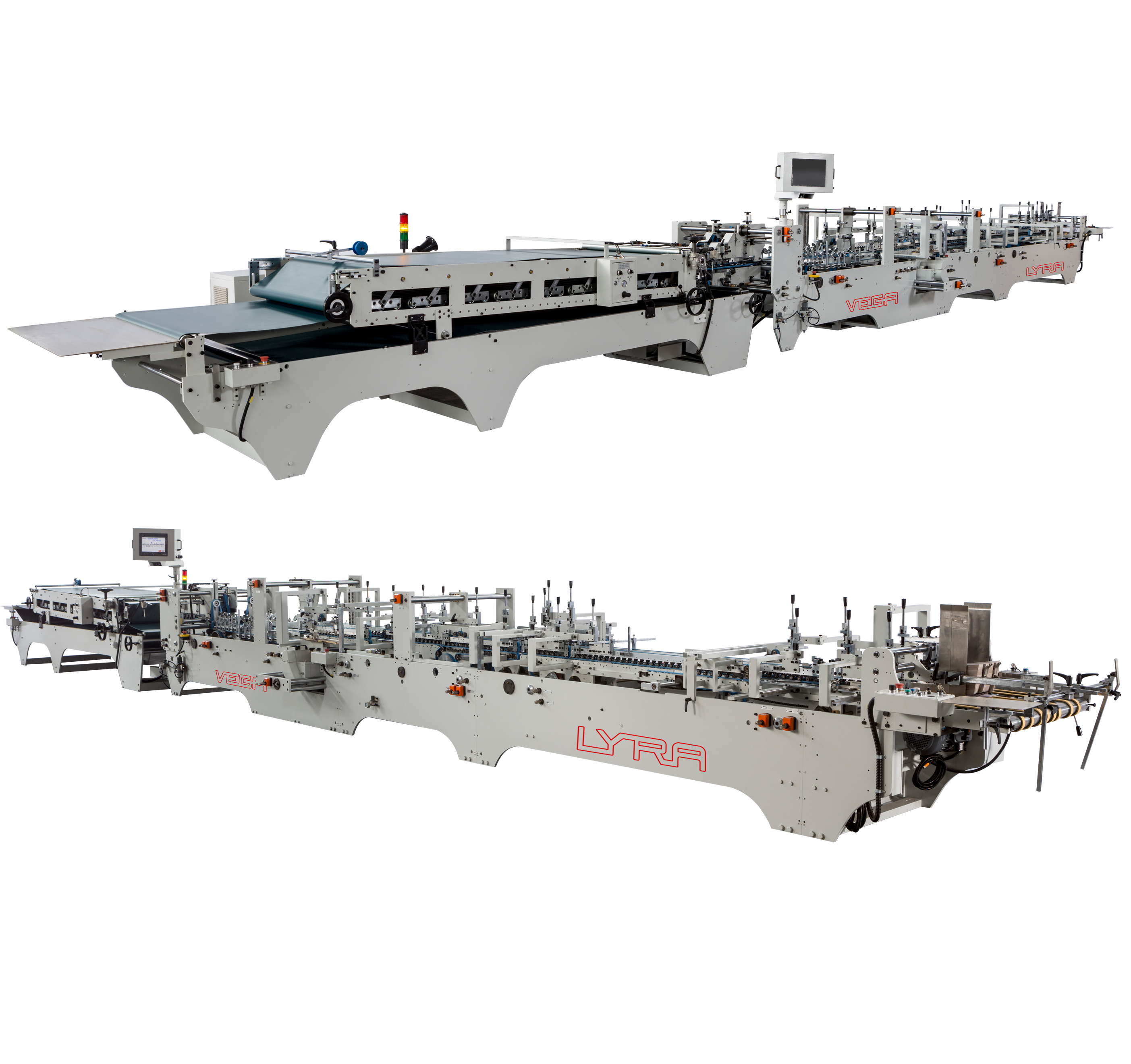

VY-820/1020 Automatic Folder Gluer

Product : Vega Folder Gluer
Industry : Packaging industry
Advantage : High speed, Easy operation
Model : VY-820/1020

Specification


Model

Modelo

VY-820

VY-1020

Sheet Size

Tamaño de tabla

Max 820*800mm(32*31’)

Min 128*55mm(5*2’)

Max 1020*800mm(40*31’)

Min 128*55mm(5*2’)

Material

Material

Card Board≤650g/m2

Corrugated Board:E,F,N

Cartón≤650g / m2

Cartón corrugado: E, F, N

Card Board≤750g/m2

Corrugated Board:E,F,N

Cartón≤750g / m2

Cartón corrugado: E, F, N

Box types

Tipo de caja

One side gluing box

Double sides gluing box

Crash lock box

Caja de encolado de un lado

Caja de encolado de doble cara

Auto Fundo

One side gluing box

Double sides gluing box

Crash lock box

Caja de encolado de un lado

Caja de encolado de doble cara

Auto Fundo

Max Speed

Velocidad máxima

400m/min

(15748’/min)

400m/min

(15748’/min)

Total Power

Potencia total

Standard 19kw

Standard 19kw

Main body power

Energía primaria

15kw

15kw

Weight

Peso

Standard 5300kg

Standard 5500kg


Dimension ( L x W x H)

Tamaño( L x W x H)

Standard 13800*1960*1900mm

(543*77*74’)

Standard 13800*2080*1900mm

(543*82*74’)


Download

Video


 VEGA 1020 4 CORNERS

 VEGA 1020 NORMAL RUNNING

 VEGA 102 BOTTOM CRASH

 VEGA COLLECTION
